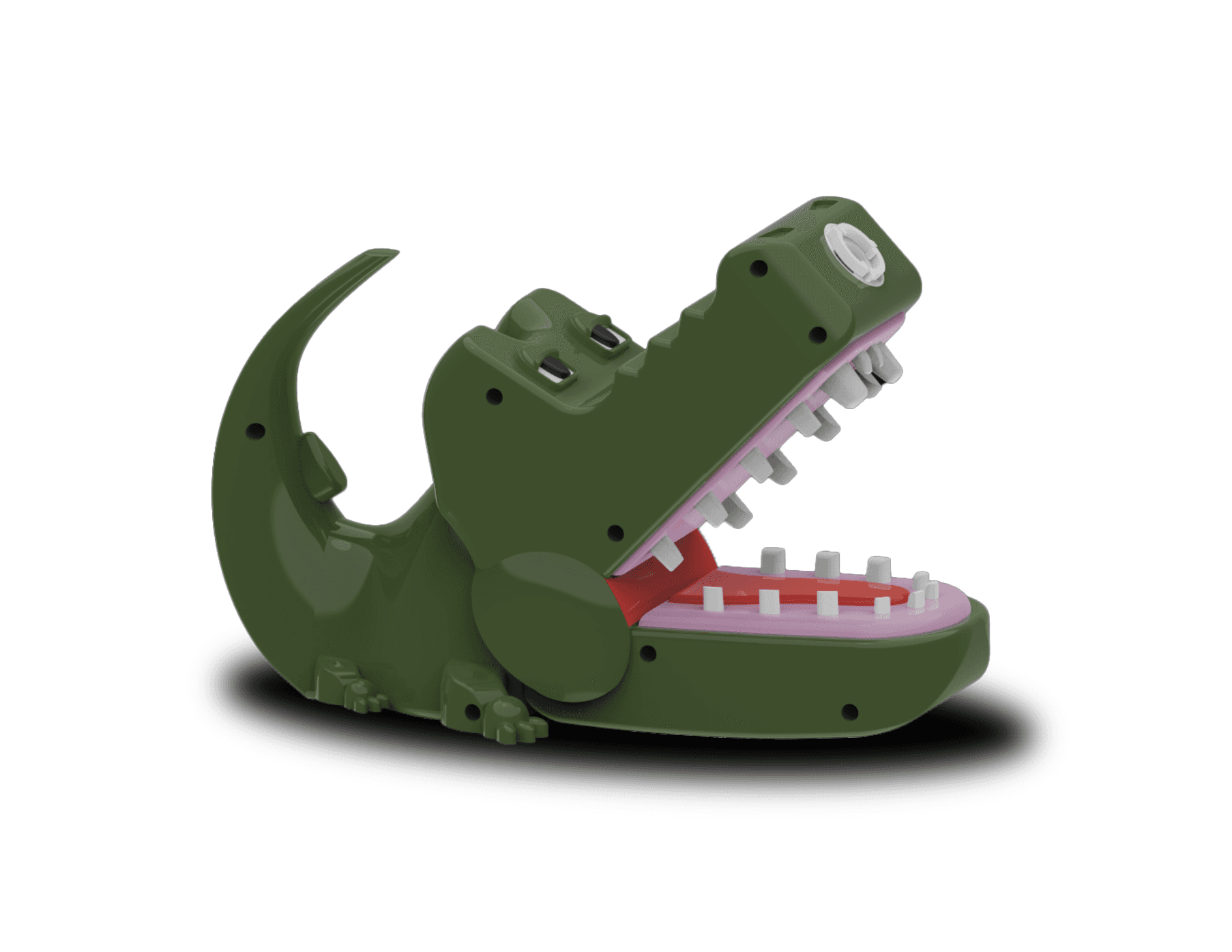

GIlly is a fully 3D printed toy with a disk lauching mechanism.

GIlly is a fully 3D printed toy with a disk lauching mechanism.

GIlly is a fully 3D printed toy with a disk lauching mechanism.

Details

Role:

Role:

Ideation

Painting & Finishing

Service:

Service:

Reverse Engeneering

CAD

Industry:

Protype/Modeling

Toys

Date:

Date:

Dec. 2023

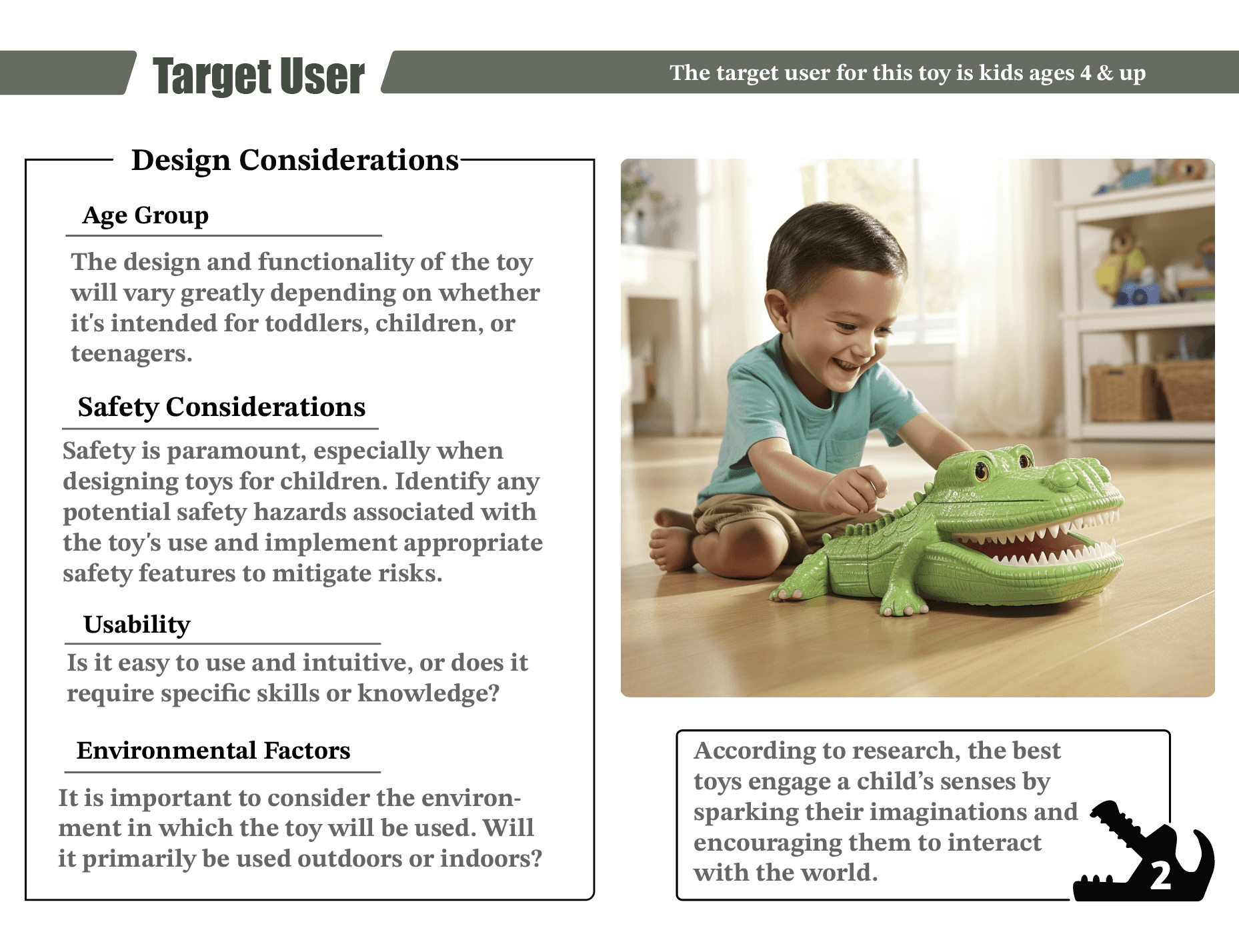

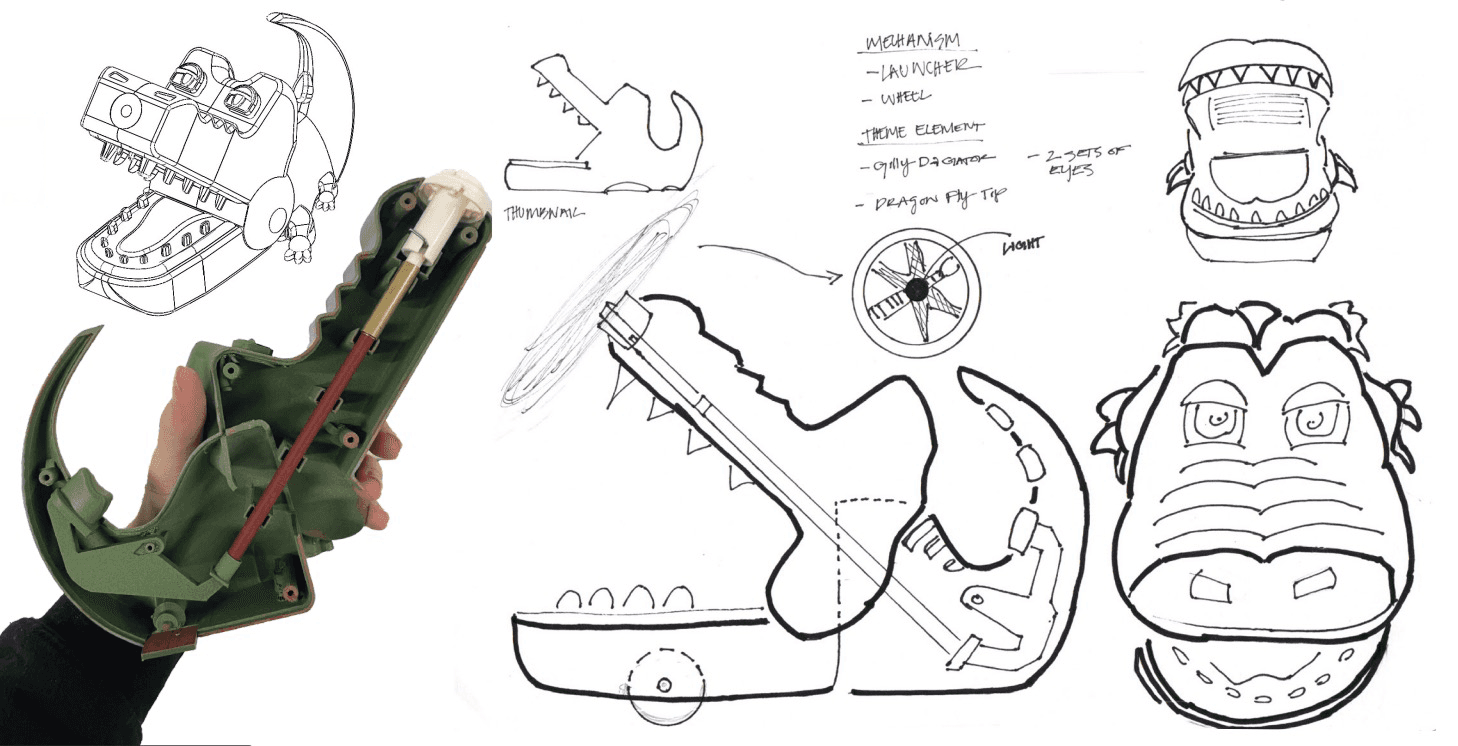

Overview

I created this alligator disk laucher by reverse engineering a pre existing toy. The process required the use of 3D printer, primer, paint, screws and a metal milling machine. Check out how it works on my Instagram @multidispy.

Key Features

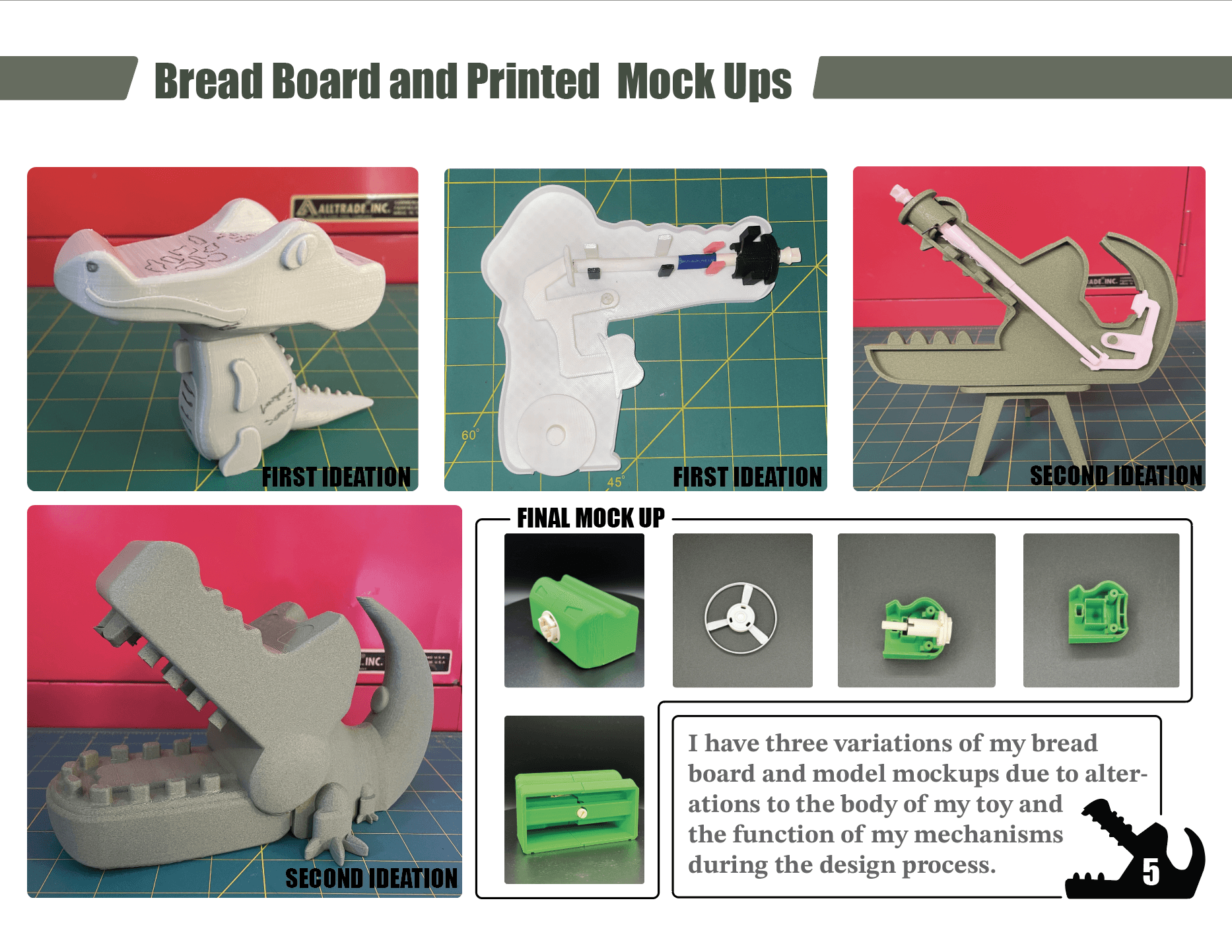

  • Fully 3D Printed: The Model was fully developed on solidworks. Before production a solidworks assembly was created to ensure that the mechanism functioned to avoid wasted parts in production.

  • Mechanism: This toy features a spring loaded mechanism that projects a disk into the air. The mechanism is activated by a trigger featured on the tail.

  • Painting & Finishing: The Toy was sanded to remove layer lines from the print. Next, the toy was sanded a layer of primer was applied. The final step in the finish process was to apply two coats of Hardcore hi-gloss spray paint.
